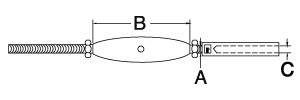

THREADED ROD TURNBUCKLE SYSTEM-THREADED ROD TURNBUCKLE SYSTEM (7)

ITEM

A (THREAD)

B

C (CABLE)

*312S-RW-0603-HS

1/4”

3-3/4”

1/8”

*312S-RW-0605-HS

1/4”

3-3/4”

3/16”

312S-RW-0603

1/4”

3-3/4”

1/8”

312S-RW-0605

1/4”

3-3/4”

3/16”

312S-RW-0805

5/16”

4-3/16”

3/16”

312S-RW-0806

5/16”

4-3/16”

1/4”

312S-RW-1005

3/8”

4-3/4”

3/16”

312S-RW-1006

3/8”

4-3/4”

1/4”

312S-RW-1306

1/2”

6”

1/4”

312S-RW-1308

1/2”

6”

5/16”

312S-RW-1610

5/8”

7-5/8”

3/8”

ITEM

A (THREAD)

B (CABLE)

C

L

AFTER SWAGE

7801S-0603

1/4”-20

1/8”

2”

4”

0.215”

7801S-0605

1/4”-20

3/16”

2-1/2”

4-1/2”

0.310”

7801S-0806

5/16”-18

1/4”

3-1/8”

5-1/2”

0.435”

7801S-1006

3/8”-16

1/4”

3-3/16”

6”

0.435”

7801S-1306

1/2”-13

1/4”

2-7/8”

6-1/2”

0.435”

ITEM

A

H

3072S-06

1/4”

1/2”

3072S-08

5/16”

9/16”

3072S-10

3/8”

3/4”

3072S-13

1/2”

7/8”

3072S-16

5/8”

1”

ITEM

A

B

C

7407S-R-06

1/4”-20

5/8”

3/8”

7407S-R-08

5/16”-18

11/16”

7/16”

7407S-R-10

3/8”-16

3/4”

1/2”

ITEM

SIZE

A

B

30731S-06

1/4”

1/4”

  5/8”

30731S-08

5/16“

5/16”

11/16”

30731S-10

5/8”

3/8”

11/16”

ITEM

A

B

6405S-06

1/4”-20

5/8”

6450S-06-L

1/4”-20   LEFT HAND

5/8”

6450S-08

5/16”-18

11/16”

6450S-08-L

5/16”-18 LEFT HAND

11/16”
