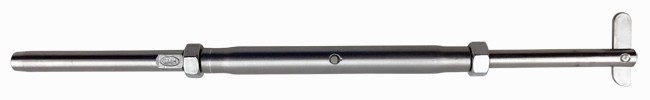

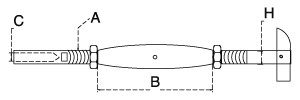

DROP PIN & SWAGE STUD TURNBUCKLE
 |
 |
|
ITEM |
A |
C (CABLE) |
B |
H |
L |
AFTER SWAGE |
TO USE WITH |
|
312S-PW-0603-HS |
1/4"-20 |
1/8" |
3-3/4" |
0.25" |
7-5/8" |
0.19" |
7804S-03-HS |
|
312S-PW-0605-HS |
14"-20 |
3/16" |
3-3/4" |
0.25" |
7-5/8" |
0.25" |
7804S-05-HS |

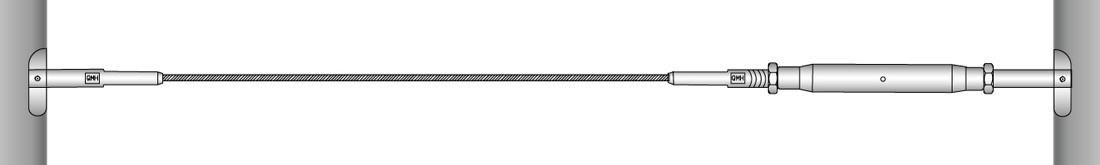

THIS STYLE PROVIDE A CLEAN LOOK ON THE POST, FOR INSTALLATION, DRILL THE HOLE ON THE POST AND INSERT THE DROP PIN TERMINAL INTO THE POST, TURN 90 DEGREE AND START TENSION THE TURNBUCKLE.
THIS FITTNG CAN BE HAND SWAGE AT JOB SITE.

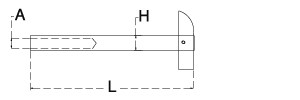

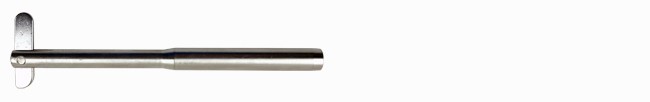

DROP PIN SWAGE STUD
 |
 |
|
ITEM |
A (CABLE) |
L |
H |
AFTER SWAGE |
TO USE WITH |
|
7804S-03-HS |
1/8” |
4” |
0.25” |
0.19” |
312S-PW-0603-HS |
|
7804S-05-HS |
3/16” |
4” |
0.25” |
0.25” |
312S-PW-0605-HS |
THIS STYLE PROVIDE A CLEAN LOOK ON THE POST, FOR INSTALLATION, DRILL THE HOLE ON THE POST AND INSERT THE DROP PIN TERMINAL INTO THE POST, TURN 90 DEGREE AND START TENSION THE TURNBUCKLE.
THIS FITTNG CAN BE HAND SWAGE AT JOB SITE. SEE PAGE 77 FOR MATCHING TURNBUCKLE.
USE 22-ST20 SWAGE TOOL FOR 1/8” AND 3/16” STUD.
