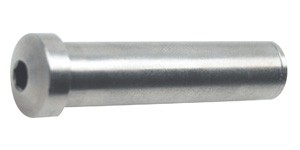

STREAMLINE RECEIVER SYSTEM-STREAMLINE RECEIVER SYSTEM (13)

ITEM

A (CABLE)

B

D

L

L1

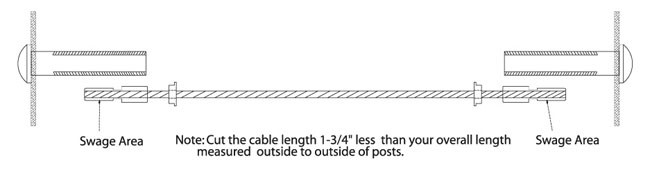

S (SWAGE AREA)

AFTER SWAGE

T

*7814S-03

1/8"

1/2"

5/8"

2-1/4"

1-1/8"

0.36”

0.19"

3/8"-16

*7814S-05

3/16"

1/2"

5/8"

2-1/4"

1-1/8"

0.36”

0.25"

3/8"-16

*7814S-06

1/4”

9/16”

3/4"

2-1/4"

1-1/8"

0.58”

0.37”

7/16”-14

7814S-08

5/16”

11/16”

7/8”

3-3/16”

1-1/4”

0.62”

0.50”

15mmx1.5

7814S-10

3/8”

11/16”

7/8”

3-3/16”

1-1/4”

0.62”

0.50”

15mmx1.5
